SYSTEM 8 Diagnostic Solution



The SYSTEM 8 Diagnostic Solution is the solution to board fault-finding problems. Equally at home with analogue and digital PCBs, the systems 64 digital and 24 analogue test channels provide a variety of test and measurement techniques to track down the most elusive faults.



The in-circuit device test (analogue and digital) is the heart of this fault-finding unit - look into an device, and check that it functions correctly - look outside, and confirm that it is correctly wired. Use the fully configurable analogue V-I tester to check for faults on unpowered PCBs. Compare the results with a known good board, automate fault-finding procedures with the test sequence generator, and fault diagnosis becomes truly effortless!

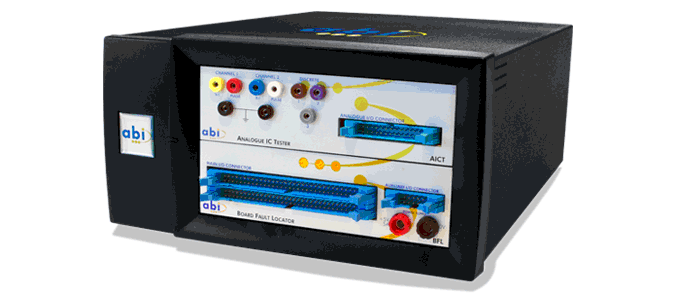

The SYSTEM 8 Diagnostic Solution can be fitted inside a standard PC case with PCI interface (two empty CD-ROM bays required) or inside an external case with USB interface.









Features

  • Digital functional test (in- and out-of-circuit)
  • Analogue functional Test (Ics and discrete devices)
  • Graphical test generator
  • Live comparison
  • Digital and analogue V-I test
  • Analogue matrix V-I
  • Digital IC identifier
  • EPROM verifier
  • Short locator
  • TestFlow manager



Configuration

  • 1x SYSTEM 8 64 channel Board Fault Locator module
  • 1x SYSTEM 8 24 channel Analogue IC Tester module
  • 1x Board Fault Locator cable set
  • 1x Analogue IC Tester cable set
  • DIL Test Clips: 20 pin (0.3”) and 40 pin (0.6”)
  • SYSTEM 8 software on CD-ROM



Presentations





Watch the video presentation of SYSTEM 8 BFL and AICT - click here





Request more information or online demonstration for this product - click here



Options and accessories



EZ prober

External cases

Recommended accessory pack

Recommended clipset
